Template Editor

The Template Editor is where you define the complete structure and configuration of a workflow template. It's organized into tabs: Structure, Schema, Settings, Authorization, and Output.

Header

At the top of the editor:

• Template name — click the pencil icon to edit inline
• Tags — add or remove tags using the tag input field
• Export — download the template as JSON or Markdown
• Auto-save indicator — changes are saved automatically (1-second debounce)

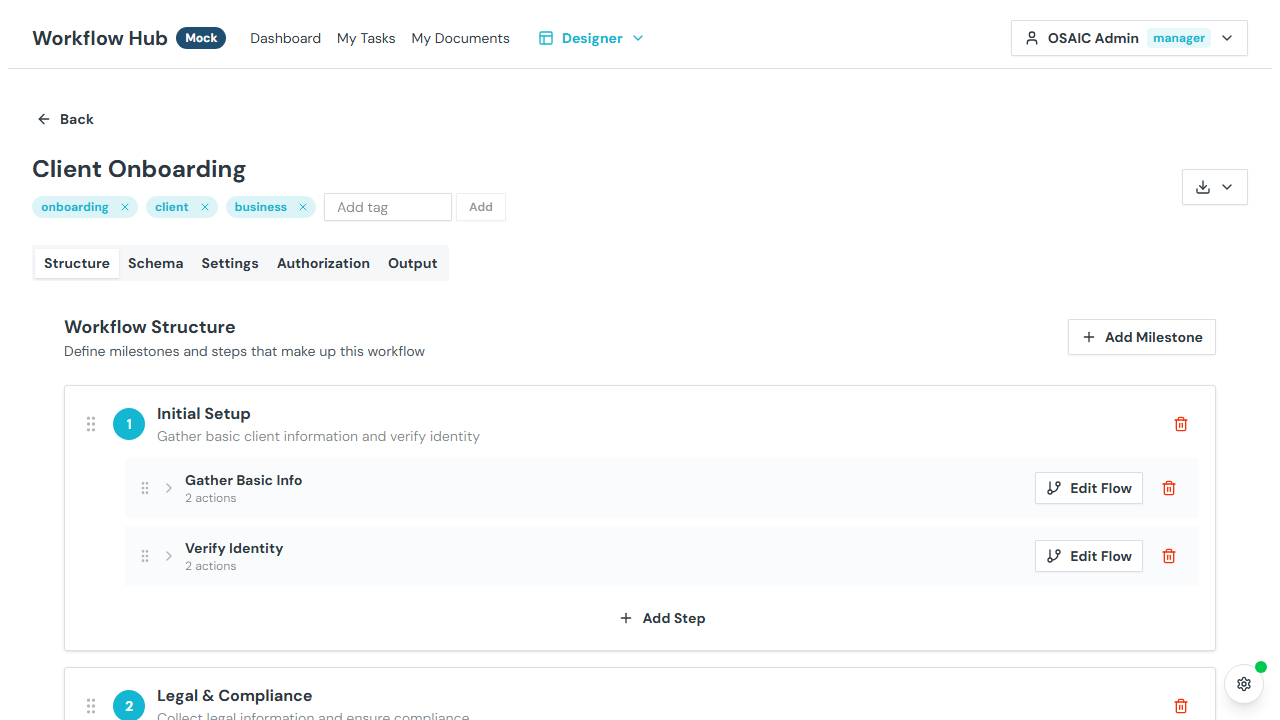

Structure Tab

The Structure tab defines the milestones and steps that make up your workflow.

Milestones

Milestones are the high-level phases of your workflow (e.g., "Application", "Review", "Onboarding").

• Add Milestone — click the button to create a new milestone
• Edit — click the edit icon to change a milestone's name and description
• Delete — remove a milestone and all its steps
• Reorder — drag milestones using the grip handle to change their sequence

Steps

Steps are the execution units within a milestone. Each step contains actions (user tasks, API calls, etc.) defined in the Flow Editor.

• Add Step — click the button within a milestone to add a new step
• Edit — change the step's name and description
• Delete — remove a step and all its actions
• Reorder — drag steps within a milestone to change their sequence
• Edit Flow — click to open the Flow Editor for this step

Each step shows the number of actions configured inside it.

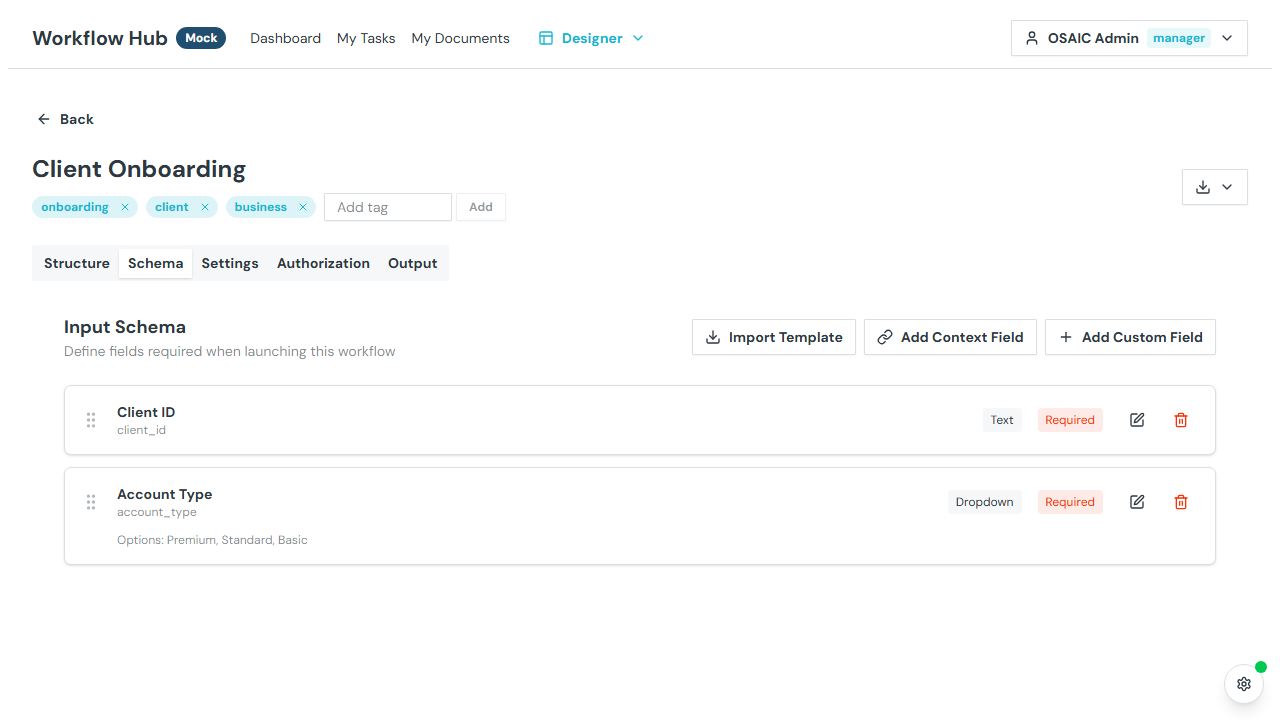

Input Schema Tab

The Schema tab defines the input fields that users fill in when launching a workflow.

Adding Fields

Click Add Field to create a new input field. For each field, configure:

Property	Description
Name	Machine identifier (alphanumeric and underscores, must start with a letter)
Label	Display label shown to users
Type	Field type — see table below
Required	Whether the field must be filled before launching
Hidden	Whether the field is hidden from the user (can be pre-filled via URL params)
Searchable	Whether this field becomes a Search Attribute for filtering workflows on the Dashboard
Description	Help text shown below the field
Placeholder	Hint text shown inside empty fields

Field Types

Type	Description
Text	Single-line text input
Number	Numeric input, with optional formatting mask
Date	Date picker
Checkbox	Boolean yes/no toggle
Select	Dropdown with predefined options
Multi-select	Choose multiple options
Checkbox Group	Multiple checkboxes
Time Slot	Time range selector

Number Masks

Number fields can have a formatting mask that controls how the value is displayed:

• Pattern mask — uses # placeholders (e.g., ###-##-#### for SSN format)
• Regex mask — uses a regular expression for custom patterns

Visibility Conditions

Make a field conditionally visible based on other input values. For example, show a "Details" text field only when the "Needs Details" checkbox is checked.

Supported operators include: equals, not equals, contains, greater than, less than, and more.

Validation Rules

Number and date fields support cross-field validation:

• Greater than / Less than another field
• Equals / Not equals a specific value
• Range validation with min/max

Import from Template

Click Import from Template to bulk-import fields from a saved Input Template. Imported fields are merged with any existing fields.

Managing Fields

• Edit — click a field card to modify its properties
• Delete — remove a field from the schema
• Reorder — drag fields to change their order in the launch form

Search Attributes

Mark input fields as Searchable to make them available for filtering on the Dashboard. When a workflow is launched, searchable field values are stored as Temporal search attributes, enabling fast lookups.

Field types are automatically mapped:

Input Field Type	Search Attribute Type
Text, Select, Email, Phone, URL	Keyword
Number	Double
Date	Datetime
Checkbox	Bool
Multi-select, Checkbox Group	Keyword List

TIP

Mark fields like Client Name, Account Number, or Status as searchable to enable the Context Filter on the Dashboard.

Context Fields

Add context fields that bind to entity data (e.g., Client, Account, Household). These fields are automatically populated from the entity context when the workflow is launched from a portal.

Available context entities include:

• Client — first name, last name, and other client attributes
• Account — account details
• Household — household information
• Financial Professional — advisor data

Context fields appear in the field catalog grouped by entity. They are typically hidden from the user (populated automatically) and marked as searchable to enable context filtering on the Dashboard.

Settings Tab

Template-level settings including name, description, and tags.

Authorization Tab

Controls who can launch this template and what roles are assigned to workflow members. See Roles & Permissions for details on:

• Creator role — what role the launcher gets (Admin, Manager, or User)
• Authorization script — JavaScript expression controlling launch access
• Default permissions — users, groups, or expressions that are automatically added when a workflow is launched

Output Tab

Define workflow output variables — data that the workflow produces when it completes. Output mappings connect action results to named output variables.
